← Mecaverre© Stopcocks / Mecaverre © Stopcocks 180°

Vacuum glass to metal "Mecaverrre" stopcocks have been produced for more than 40 years. They are used on glass analysis benches at major French laboratories such as CNRS or CEA : a proof of quality !

  • Body made of Borosilicate glass (PYREX®, boro 3.3)
  • Mechanism in stainless steel INOX 316L.
  • Leak tightness of the mechanism ensured by Viton gaskets (80 shores)
  • The mechanism can be removed for cleaning or replacement
  • Bakeable at 120°C
  • Leak rate measured to 10-9 mbar/l/sec
  • High resistance to corrosion

Link to page 90° stopcocks

http://www.ctvm-glass-metal.com/product-details.php?lang=en&id=1

Link to page stopcocks spare parts

http://www.ctvm-glass-metal.com/product-details.php?lang=en&id=5

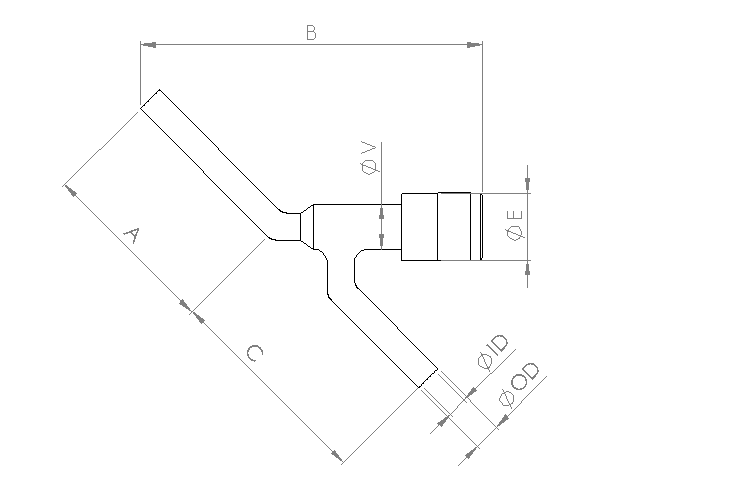

Reference Details ØV ØOD ØID C A
65VANNE18004 STOPCOCK 180° - Ø4 13 8 5 95 80
65VANNE18010 STOPCOCK 180° - Ø10 20 12 9 95 80
65VANNE18015 STOPCOCK 180° - Ø15 30 19 16 125 80
