CTVM expertise is not restricted to glass-to-meal seals.

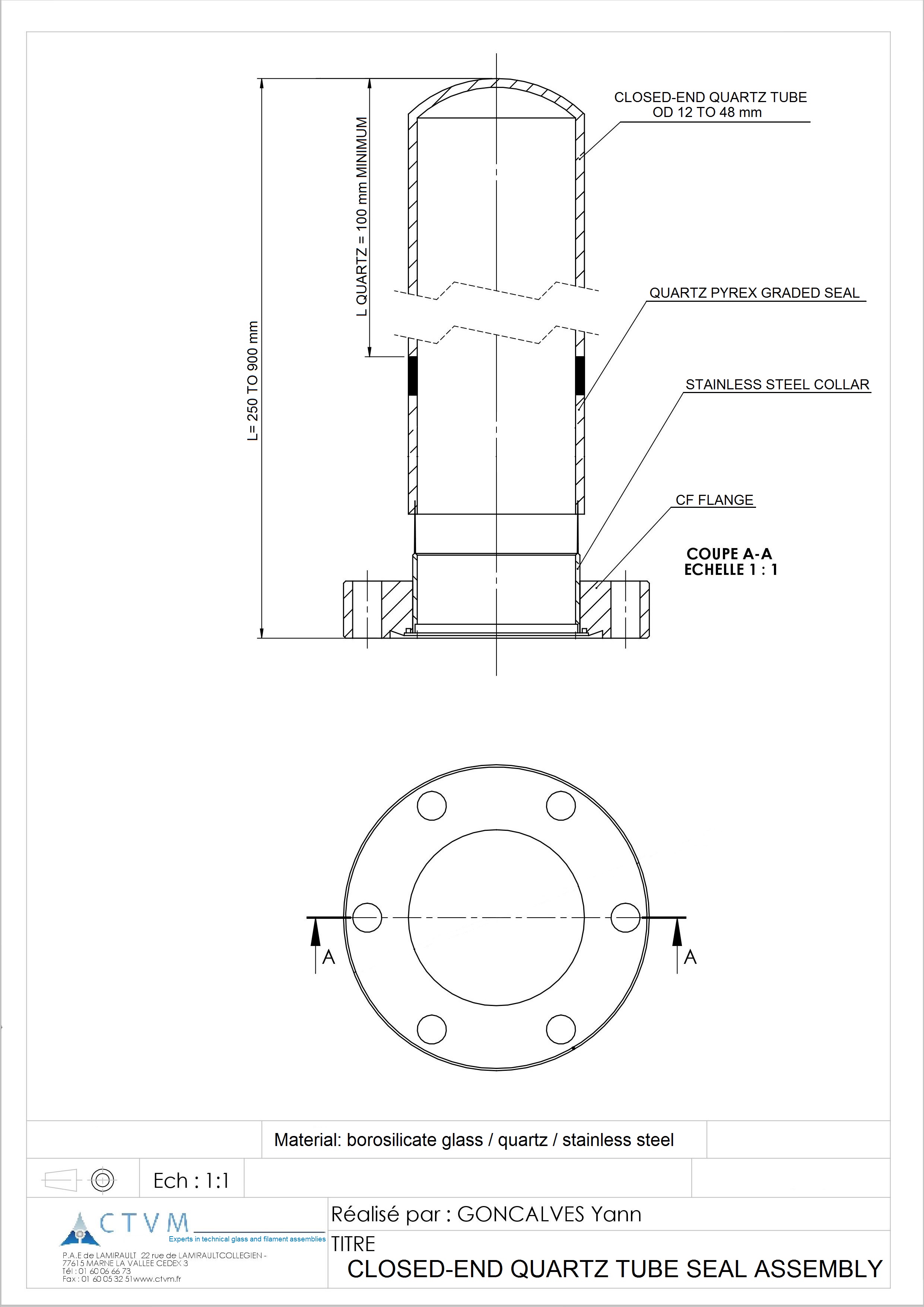

We manufacture closed-end quartz tube furnaces. Those furnaces are built with a stainless steel collar and a borosilicate glass - quartz graded seal - QPGS. The closed-end quartz tube is welded onto this QPGS with a length specified by the customer. The seal assembly is TIG welded on CF type flange.
We custom-manufacture those furnaces and can suit tube and flange dimensions to your specifications.
Typical design dimensions :
- tube / CF flange : Ø 12 / CF16 up to Ø 48 / CF40
- length variations from 250 to 900 mm.
Properties :
- the quartz tube can be used at high temperatures up to about 1000°c
- leak-tightness of the assembly guaranteed and tested to 1.10-9 mbar/l/sec
