← Mecaverre© Stopcocks / Mecaverre© Stopcocks 90°

Vacuum glass to metal "Mecaverrre" stopcocks have been produced for more than 40 years. They are used on glass analysis benches at major French laboratories such as CNRS or CEA : a proof of quality !

  • Body made of Borosilicate glass (PYREX®, boro 3.3)
  • Mechanism in stainless steel INOX 316L.
  • Leak tightness of the mechanism ensured by Viton gaskets (80 shores)
  • The mechanism can be removed for cleaning or replacement
  • Bakeable at 120°C
  • Leak rate measured to 10-9 mbar/l/sec
  • High resistance to corrosion

Link to page 180° stopcocks :

http://www.ctvm-glass-metal.com/product-details.php?lang=en&id=3

Link to page stopcocks spare parts

http://www.ctvm-glass-metal.com/product-details.php?lang=en&id=5

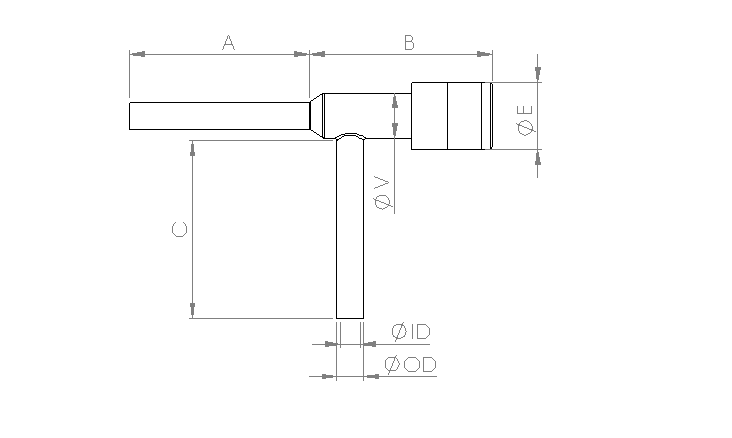

Reference Details B A ØV ØID ØOD C
65VANNE9004 STOPCOCK 90° - Ø 4 37 80 13 5 8 80
65VANNE9010 STOPCOCK 90° - Ø 10 51 80 20 9 12 80
65VANNE9015 STOPCOCK 90° - Ø 15 70 80 30 16 19 80
